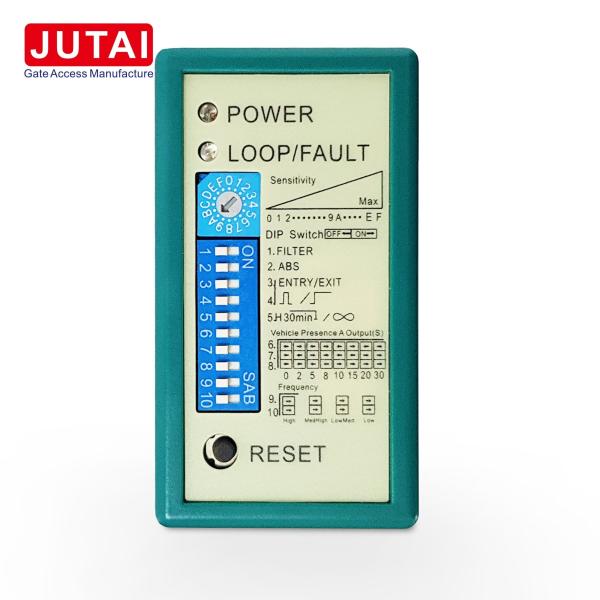

Vehicle Presence Detector with Pulse Output Loop Sensor for Barrier Gates AC DC
High-Performance Vehicle Loop Detector
The vehicle loop detector (also known as a loop sensor) is a cornerstone of modern intelligent transportation and access control solutions, engineered to deliver precise, consistent vehicle detection across diverse indoor and outdoor environments. Whether it's a parking loop sensor for car park management, a gate loop detector for automated barrier systems, or a traffic loop detector for intersection control, this professional-grade device excels at identifying cars, trucks, motorcycles, forklifts, and other vehicles—making it indispensable for countless commercial, industrial, and public sector applications.
Crafted with versatility and durability in mind, the loop detector integrates seamlessly with inductive loops embedded in roads, driveways, parking bays, and entry points. Unlike conventional sensors, it offers dual operational modes—Presence Mode and Pulse Mode—via independent relay outputs, enabling flexible integration with gate controllers, traffic counters, access management systems, and industrial automation tools. With 16 levels of adjustable sensitivity and configurable DIP switches for delay settings, frequency selection, and auto-reset functions, the vehicle loop detector adapts effortlessly to varying vehicle sizes, loop configurations, and environmental conditions.
Key Advantages of Our Loop Sensor
- Universal Vehicle Detection: Reliably identifies cars, trucks, motorcycles, forklifts, and commercial vehicles, eliminating false triggers and ensuring consistent performance.
- Dual Operational Modes: Presence Mode for continuous vehicle monitoring (e.g., parking bay occupancy) and Pulse Mode for counting or trigger-based actions (e.g., gate activation), maximizing usability.
- Flexible Power Options: Available in two models—LD100 (100-240V AC) and LD102 (12-24V DC)—to suit indoor, outdoor, and mobile applications.
- Weatherproof & Durable: Rugged housing designed for both indoor and outdoor use, withstanding extreme temperatures and high humidity.
- Extended Compatibility: Supports a wide loop inductance range and long installation distances (with shielded cable), offering flexibility in layout.
Technical Specifications
| Parameter |
Specification |
| Product Name |
Vehicle Loop Detector / Loop Sensor |
| Model |
LD100 (AC Power) / LD102 (DC Power) |
| Power Supply |
100-240V AC (LD100) / 12-24V DC (LD102) |
| Frequency Range |
20-80 kHz (4-step selectable) |
| Sensitivity |
16-level adjustable (0.010% to 2.56% DL/L) |
| Response Time |
10-90 ms (on/off) |
| Operating Temperature |
-40°C to +70°C |
| Relay Output |
Presence Relay + Pulse/Fault Relay |
| Status Indicators |
Power LED (Red) + Detection LED (Green) |
| Reset Function |
Manual reset button |
| Humidity Tolerance |
Up to 95% (non-condensing) |
| Loop Inductance Range |
20-2000 µH |
| Maximum Installation Distance |
Up to 30 m (shielded cable recommended for distances >10 m) |
| Housing Protection |
Weatherproof design for indoor/outdoor use |
| Warranty |
2-year warranty |
| Technical Support |
24/7 professional technical support |
Versatile Applications of Loop Detectors
From parking lot access control to traffic signal management, the loop detector (loop sensor) is a multi-functional solution for:
Parking Management
Car park entry/exit barrier systems, parking space occupancy monitoring, and guidance systems for malls, stadiums, and airports.
Access Control
Residential/commercial gate automation, warehouse forklift access, loading dock vehicle detection, and perimeter security gates.
Traffic Control
Intersection vehicle presence detection, traffic signal triggering, toll booth counting, and road traffic data collection.
Industrial Automation
High-speed roller doors, sectional doors, weighbridge triggers, and factory internal vehicle flow management.
Specialized Scenarios
Drive-through facilities (banks, fast-food restaurants), EV charging station bay occupancy detection, car wash entrance automation, and railway crossing safety systems.
Public Transit
Bus station scheduling, airport/port vehicle access, and public building automated entry doors.
Backed by a 2-year warranty and 24/7 technical support, our vehicle loop detector combines reliability, flexibility, and ease of use—making it the preferred choice for engineers, contractors, and facility managers seeking a robust sensing solution. Whether you need a parking loop sensor for a small commercial lot or a traffic loop detector for municipal intersections, this device delivers consistent performance that minimizes downtime and enhances operational efficiency.
Invest in a loop detector that adapts to your needs: experience precise vehicle detection, seamless integration, and long-lasting durability for all your access control and traffic management requirements.
DIP Switch Configuration
- DIP 1 and 2: Delay and sensitivity boost
- DIP 3 and 4: Relay B output mode pulse presence test
- DIP 5: Auto reset 30 min or permanent presence
- DIP 6 to 8: Relay A delay 0 to 30 sec
- DIP 9 and 10: Frequency selection High Low to avoid interference
Loop Installation Guide
| Loop Perimeter |
Recommended Turns |
| 3 to 4 m |
6 turns |
| 4 to 6 m |
5 turns |
| 6 to 10 m |
4 turns |
| 10 to 20 m |
3 turns |
| Over 20 m |
2 turns |
Why Choose JUTAI Loop Detector
- 15+ years of manufacturing expertise
- Rigorous quality control and pre-shipment testing
- OEM/ODM customization available
- Small and bulk orders accepted
- 2-year warranty and reliable after-sales support
- Market protection for distributors
Order Now and Enhance Your Vehicle Detection System
Contact us for samples, pricing, and custom solutions
DIP Switch Settings
DIP 1 & DIP 2 Setting Special Functions
DIP 3 & DIP 4 Setting Relay B Output
DIP 5 Setting Automatic Reset
DIP 6 & DIP 7 & DIP 8 Setting Relay A Delay
DIP 9 & DIP 10 Setting Frequency
Used to avoid interference (40 K to 100 KHz)
Loop Installation Diagrams
Compared to Other Brands
Mass Production Quality
Our production line ensures efficient mass production, rigorous quality control, and thorough pre-shipment testing to deliver Loop detector products of the utmost perfection.
Product Models
- LD-100: Single channel, boxed, 1 type 11pin connects 100-240VAC (EU standard)
- LD-102: Single channel, boxed, 1 type 11pin connects 12-24VADC (EU standard)
- LD-105: Single channel, boxed, 2 type 11pin connects 100-240VAC (USA standard)
- LD-106: Single channel, boxed, 2 type 11pin connects 12-24VADC (USA standard)
Certification
